主要特性：
1. Standard SMA 905 connector and damage resistant SMA(HPSMA) available
2. Different fiber endface finishes available for higher power applications
3. Multimode and singlemode fiber types
4. Operating wavelengths from 200nm to 2000nm
5.Stainless steel armored cabling for maximum safety
6.Customized products available

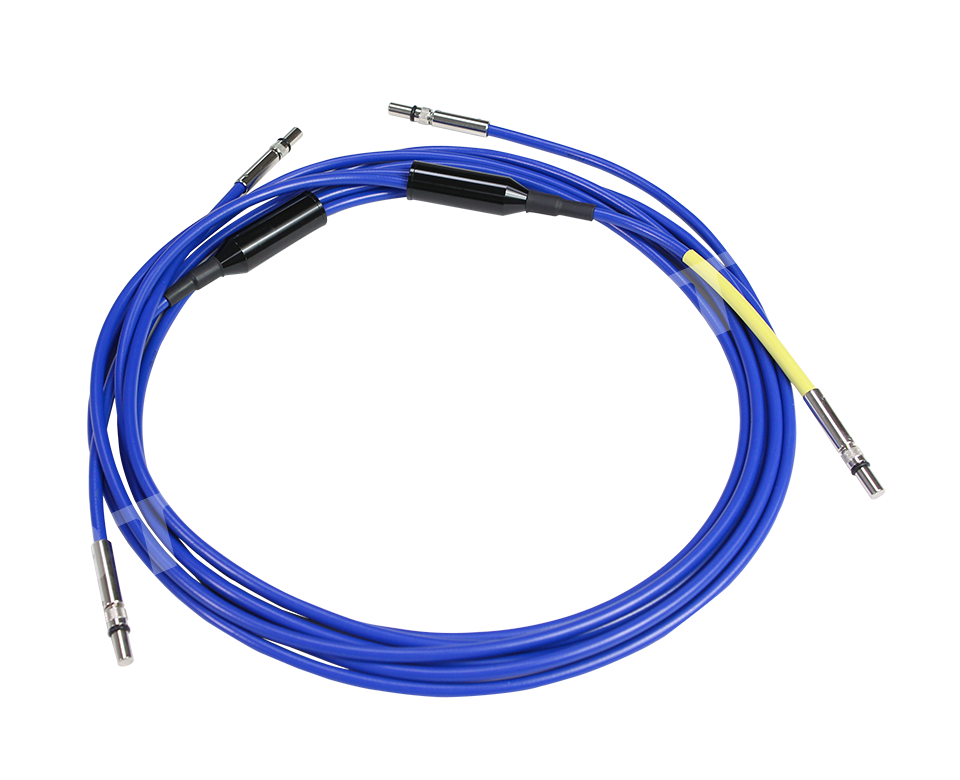

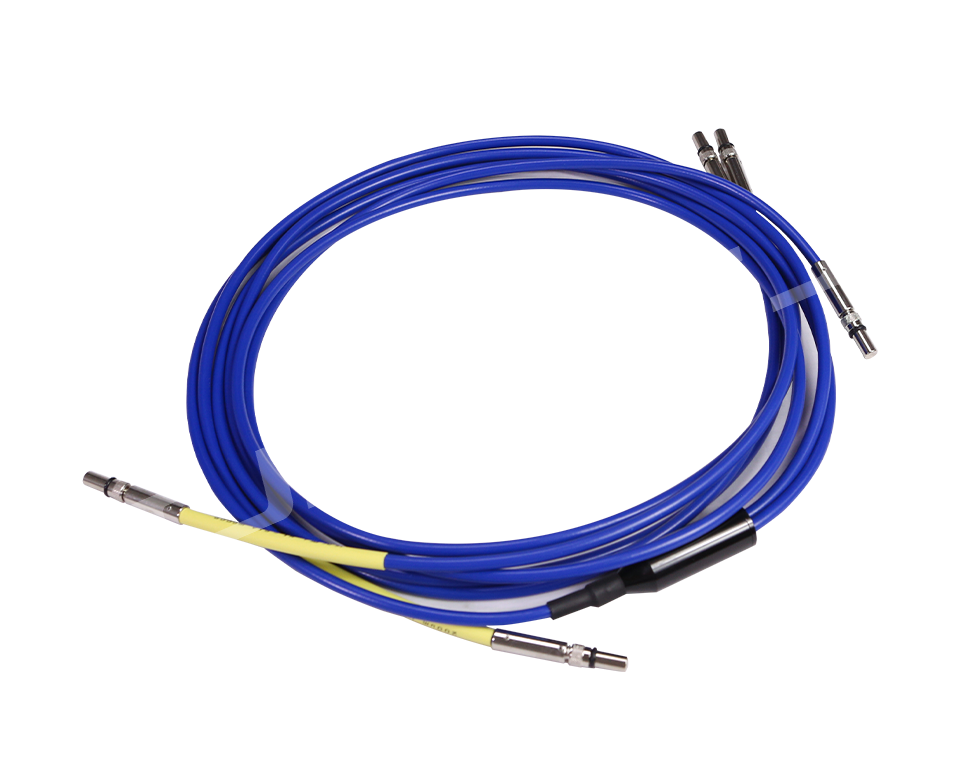

JPT optics produces the fiber optic patchcords for high power applications, these patchcords feature special high power fibers, carefully prepared fiber endfaces, and specially designed fiber connector to ensure maximum power handing for your application.
The damage resistant SMA(HPSMA905) have inner tip of the ferrule is recessed creating a “well” so that nothing makes direct contact with the tip of the fiber.
Applications
Laser marking, cutting and welding
Materials processing
High power spectroscopy
Parameter | ||||
Connectory Type | SMA 905 | HPSMA | ||
Ferrule Type | Flat | Flat | Suspending | |
Ferrule Aperture | Φ127-2000um | Φ127-2000um | Φ200-2000um | |
Nut | Hexagon Nut | Round Nut | Hexagon Nut | Round Nut |
